Vortex

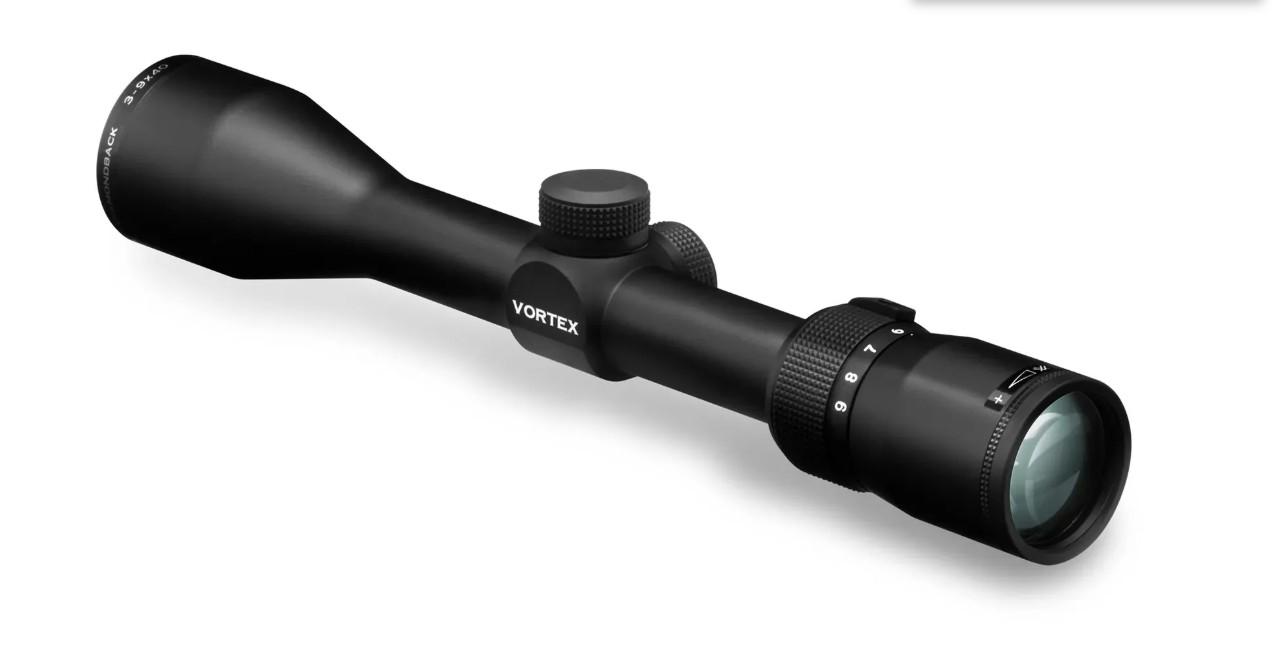

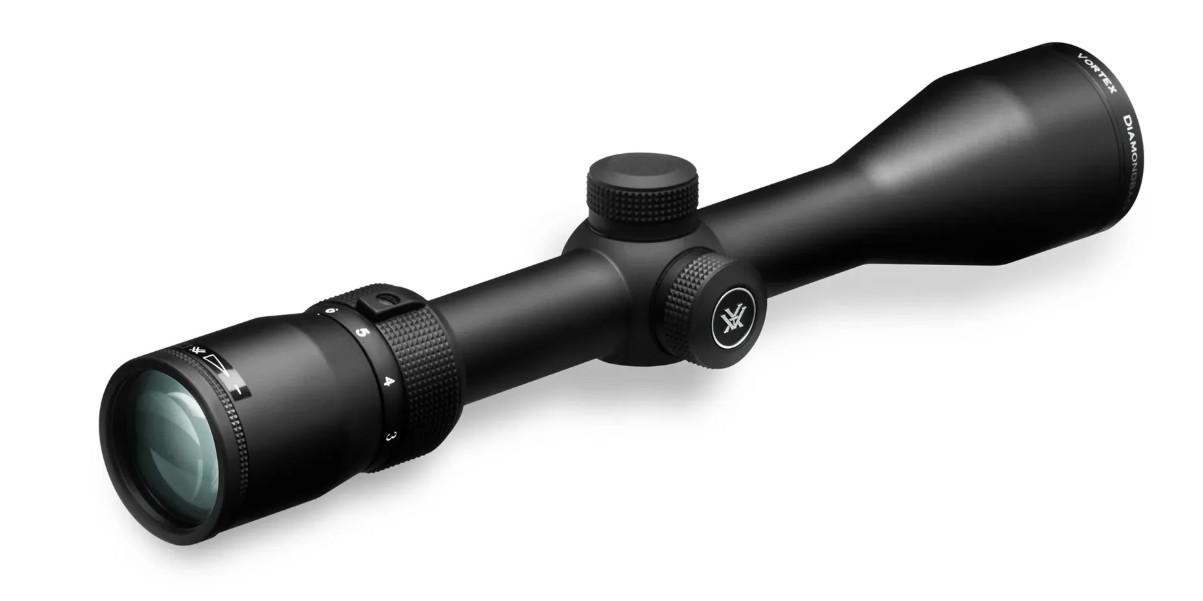

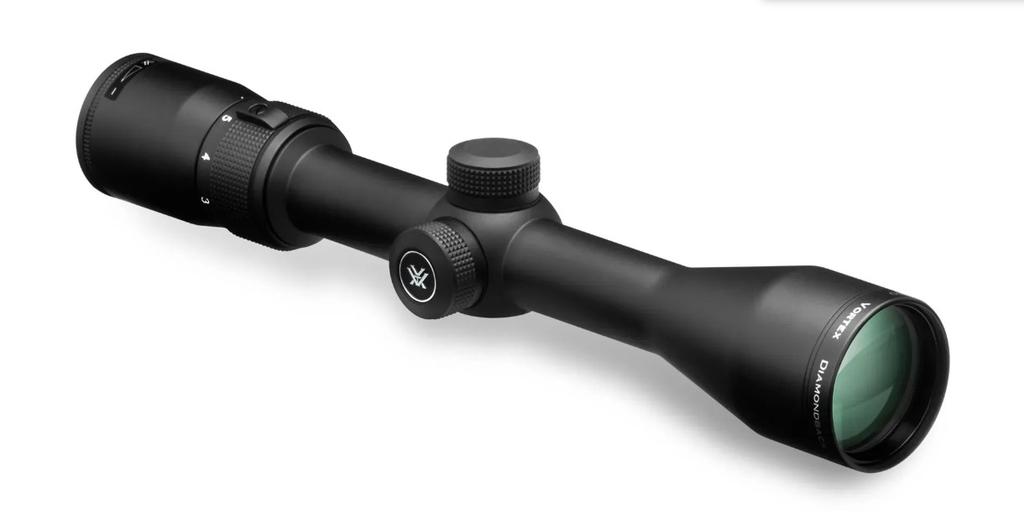

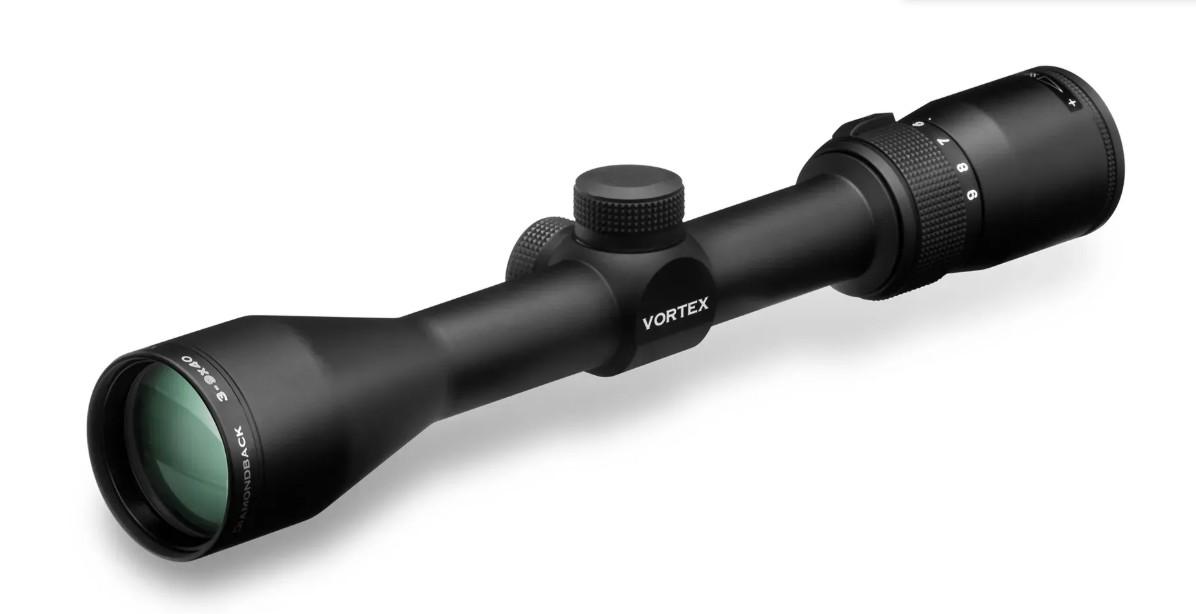

DIAMONDBACK 3–9×40 RIFLESCOPE – DEAD-HOLD BDC MOA RETICLE
Item # VORT DBK-01-BDC MSRP $349.99PRODUCT DETAILS
TECH SPECS:
Reliable, Rugged, and Value-Packed
The Diamondback 3–9×40 is a proven, hard-working riflescope built for hunters seeking exceptional clarity and edge-to-edge performance on a budget. Its Dead-Hold BDC MOA reticle features optimized dot spacing that simplifies holdover and wind correction—perfect for dynamic field use with no ballistic tables required.
Crafted from aircraft-grade aluminum with a matte, anti-glare finish, this optic balances lightweight portability (about 14.4 oz) with durability—fully waterproof, fogproof, and shockproof to stand up to tough conditions.
Key Features
-
Magnification: Versatile 3–9× zoom range for close-range drills or field hunting.
-
Objective Lens: 40 mm diameter provides bright image clarity across light conditions.
-
Reticle: Dead-Hold BDC MOA with customized dots calibrated for accurate holdovers and wind adjustments.
-
Eye Relief: Approx. 3.3 inches for comfortable, recoil-safe viewing.
-
Field of View: Wide 44.6′ (3×) down to 14.8′ (9×) @ 100 yd for quick target acquisition.
-
Turrets: Capped, second-focal plane turrets with ¼ MOA clicks, offering up to 70MOA total windage & elevation travel.
-
Coatings: Fully multi-coated optics enhance brightness and contrast.
-
Durability: Built to endure recoil and adverse weather—nitrogen-purged, O-ring sealed.
-
Warranty: Backed by Vortex's unconditional VIP Lifetime Warranty.
Ideal For
-
Hunters and shooters wanting high-end performance at a mid-tier price
-
Those who value intuitive, fast adjustments with BDC reticle functionality
-
Outdoor users needing a rugged optic that can withstand the elements and recoil
| Feature | Specification | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Number | DBK-01-BDC | ||||||||||||||||||||||||||||||||
| Magnification | 3–9× | ||||||||||||||||||||||||||||||||
| Objective Lens Diameter | 40 mm | ||||||||||||||||||||||||||||||||
| Reticle | Dead-Hold BDC MOA (2nd focal plane) | ||||||||||||||||||||||||||||||||
| Eye Relief | Approx. 3.3″ | ||||||||||||||||||||||||||||||||
| Field of View (@100 yds) | 44.6′ (3×) – 14.8′ (9×) | ||||||||||||||||||||||||||||||||
| Tube Diameter | 1″ | ||||||||||||||||||||||||||||||||
| Adjustment Graduation | ¼ MOA per click | ||||||||||||||||||||||||||||||||
| Max Elevation Adjustment | 70 MOA | ||||||||||||||||||||||||||||||||
| Max Windage Adjustment | 70 MOA | ||||||||||||||||||||||||||||||||
| Travel per Rotation | ~15 MOA | ||||||||||||||||||||||||||||||||
| Parallax Setting | Fixed @ 100 yd | ||||||||||||||||||||||||||||||||
| Length | ~11.6″ | ||||||||||||||||||||||||||||||||
| Weight | ~14.4 oz | ||||||||||||||||||||||||||||||||
| Construction | Aircraft-grade aluminum, O-ring sealed | ||||||||||||||||||||||||||||||||
| Weather Resistance | Waterproof, fogproof, shockproof | ||||||||||||||||||||||||||||||||
| Feature | Specification |
|---|---|
| Model Number | DBK-01-BDC |
| Magnification | 3–9× |
| Objective Lens Diameter | 40 mm |
| Reticle | Dead-Hold BDC MOA (2nd focal plane) |
| Eye Relief | Approx. 3.3″ |
| Field of View (@100 yds) | 44.6′ (3×) – 14.8′ (9×) |
| Tube Diameter | 1″ |
| Adjustment Graduation | ¼ MOA per click |
| Max Elevation Adjustment | 70 MOA |
| Max Windage Adjustment | 70 MOA |
| Travel per Rotation | ~15 MOA |
| Parallax Setting | Fixed @ 100 yd |
| Length | ~11.6″ |
| Weight | ~14.4 oz |
| Construction | Aircraft-grade aluminum, O-ring sealed |
| Weather Resistance | Waterproof, fogproof, shockproof |
