Kns Precision
.154 DIAMETER NON-ROTATING TRIGGER/HAMMER PINS
Item # KNS NRTHPMOD2-154-BLK MSRP $35.00PRODUCT DETAILS
TECH SPECS:
The KNS Precision Non-Rotating Trigger/Hammer Pins, Gen 2 Mod 2, .154" are designed for AR-15 and M16 receivers to help prevent hammer and trigger pins from rotating during extended firing. The system uses anti-creep retainers to help reduce wear on the receiver and maintain proper pin positioning.
Constructed from stainless steel with black nitride-treated side plates, the Gen 2 Mod 2 system combines durable materials with a low-profile configuration. The .154-inch diameter pins are designed for compatible standard-size AR-15 and M16 receivers without requiring receiver modification.
The Gen 2 Mod 2 design retains the recognizable "dogbone" appearance of the original KNS Precision Gen 1 configuration while incorporating additional strength intended for extended service life. KNS Precision states that the pins are designed to withstand the impact associated with semi-automatic and select-fire applications, including 9mm, .223, 5.56mm, and 7.62mm platforms.

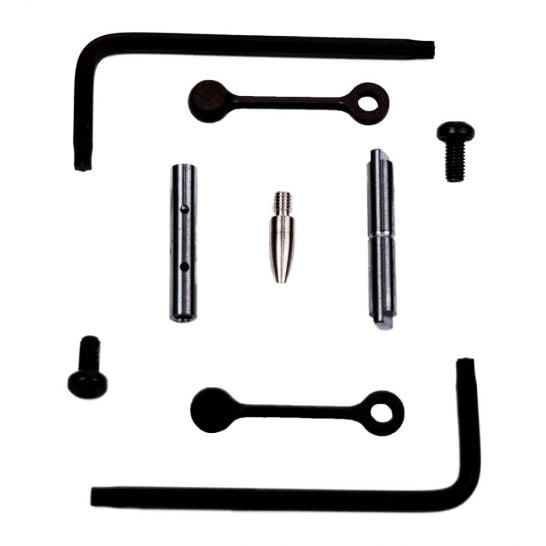

The kit includes the hammer pin, trigger pin, two low-profile anti-rotation links, two screws, hex wrenches, and an installation tool, providing the components and tools needed for installation.
Key Features:
- KNS Precision Gen 2 Mod 2 non-rotating pin system
- Designed for compatible AR-15 and M16 receivers
- .154-inch diameter
- Stainless steel construction
- Black nitride finish
- Anti-creep retainers help prevent pin rotation
- Low-profile anti-rotation links
- Installation tools included
- Designed for semi-automatic and select-fire applications
- Compatible with 9mm, .223, 5.56mm, and 7.62mm platforms
- Hunting and shooting applications
- No FFL shipping required
- SKU NRTHPMOD2-154-BLK
Compatibility Note: The supplied manufacturer information states that these pins are not compatible with Jewell match triggers. Verify receiver and trigger compatibility before installation.
| KNS Precision Non-Rotating Trigger/Hammer Pins, Gen 2 Mod 2 (NRTHPMOD2-154-BLK) | |
|---|---|
| Platform | AR-15 / M16 |
| Pin Diameter | .154" |
| Material | Stainless Steel |
| Finish | Black Nitride |
| Pin Type | Non-Rotating Trigger/Hammer Pins |
| Retainer Type | Low-Profile Anti-Rotation / Anti-Creep Retainers |
| Recommended Torque | 8 lbs |
| Installation Tools | Included |
| Trigger Compatibility | Not Compatible with Jewell Match Triggers |
| Components Included | Hammer Pin, Trigger Pin, (2) Low-Profile Anti-Rotation Links, (2) Screws |
| Tools Included | Hex Wrenches and Installation Tool |
| Applications | Hunting, Shooting |
| Product Type | Trigger Pin Kit |
| FFL Required | No |
